RTL1090 ADS-B Decoder for Windows

adsbslider

Thanks to the folks over at Jetvision.de we have a very nice ADS-B decoder for Windows that works with RTL2832U sticks called RTL1090. Unlike the Ubuntu, GNU Radio, gr-air-modes combination, it’s fast and easy to install under Windows. For those who want to experiment with the ADS-B hobby but were a bit intimidated by the complexity of the software, RTL1090 is for you. The software allows a RTL2832U stick to emulate a Beast ADS-B receiver. Beast Mode is compatible with Plane Plotter and Virtual Radar Server ADS-B software. RTL1090 also will decode Mode A/C for those who may be interested in that. The software is still under development so features may change and improve, but it appears to work extremely well at this time.

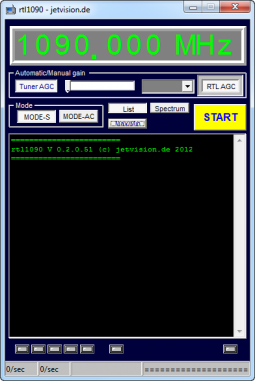

RTL1090 Control Panel

Installation is pretty simple. There is a read me file included in the distribution that will walk you through the install. Most everything is pretty standard for a RTL2832U stick installation. Download RTL1090, install the Zadig drivers, copy the libusb-1.0.dll and rtlsdr.dll files into the RTL1090 directory and you are good to go. RTL1090 outputs the decoded data on TCP port 31001. To use the decoder with Plane Plotter or Virtual Radar Server, you simply need to configure the programs to accept ADS-B data from a Beast receiver, and set the port to 31001. In my testing, the RTL1090 decoder worked easily as well as the gr-air-modes Linux decoder. I was able to receive ADS-B signals easily out to 75nm using a RTL2832U / R820T DVB-T stick with its stock antenna. Right now the software can be downloaded from the RTL1090 Yahoo Group and probably will eventually be available on the Jetvision.de web site. If you liked the article that was recently posted here on Building an Inexpensive ADS-B Receiving and Sharing System, you can use Windows as the OS, RTL1090 for the RTL2832U ADS-B decoder, and Plane Plotter or Virtual Radar Server as the display system. If you would like to share your ADS-B data with services such as Flightradar24 and use their mobile apps to display your data, you will need to use Plane Plotter. Here again, if you are interested in receiving and decoding ADS-B data with a RTL2832u stick, I would highly recommend using the RTL2832U / R820T chipset DVB-T sticks.
Newsky TV28T v2 USB DVB-T & RTL-SDR Receiver, RTL2832U & R820T Tuner, MCX Input. Low-Cost Software Defined Radio Compatible with Many SDR Software Packages

RTL1090 Demo Video

6 Responses to RTL1090 ADS-B Decoder for Windows

  1. Rene, pe1ljq says:

    It just works flawless! Easy to install and to connect with virtual radar. Had to restart Windows after setup but then data came in and planes showed up in virtual radar. Great work

  2. derek henderson says:

    where can I download this software without joining
    the yahoo group

  3. James says:

    Looks great but the file has been hidden behind a yahoo user group and yahoo have a technical problem at the moment so nobody can join the group to get the file. It would be much better for the file to be hosted directly on the jetvision.de website, even perhaps use a paypal donation system to cover hosting costs.

    • KS4JU says:

      It appears that the author intends to make the file available at the http://rtl1090.web99.de site at some point. Maybe, the Yahoo Group problem will clear up.I have posted a message there explaining the problem, so maybe the author will make it available from his page. Thanks for the heads up.

  4. sprut says:

    Nice!
    After i red about the RTL2832U-sticks i ordered one from china and hat a very hard fight with GNU-radio. A convenient solution for normal users was really really needed, and RTL1090 seems to be this.
    Now i have only to update my software (adsbScope) to support RTL1090. That should be easy.

  5. mch says:

    Good!
    I want to know how to make us receive the I/Q data from AD directly.What command do we send? Read some registers about the ad data? Disable the functions of the path after the AD part?
    I hope you can hope me with this.
    Thanks!
